Project Description

PUMP

  • Chamber diaphragm pump -Self-priming
  • Self-priming -Works dry without damage
  • Fitted with a Honeywell® microswitch that switches off the motor when the delivery stops and prevents maximum pressure from being exceeded
  • Resistant materials allow the pumping of chemical products
  • Polypropylene body
  • Suction and delivery valves in Viton® -Membranes in Santoprene®
  • Screws and fixing elements in galvanized steel
  • Compatible with AdBlue® and BlueDEF® additives for heavy diesel-engine vehicles

MOTOR

  • 12-24V dc
  • Permanent magnet construction
  • Painted steel casing
  • Thermal protection with external fuse

DOWNLOAD

For small spraying jobs and inter-row weeding, gardening, sanitizing and cleaning caravans and boats, treating lawns and green areas, disinfecting vehicles and farms.

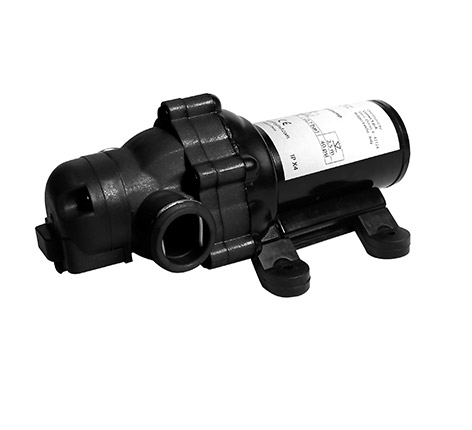

EF 1200

EF 2200

EF 3000

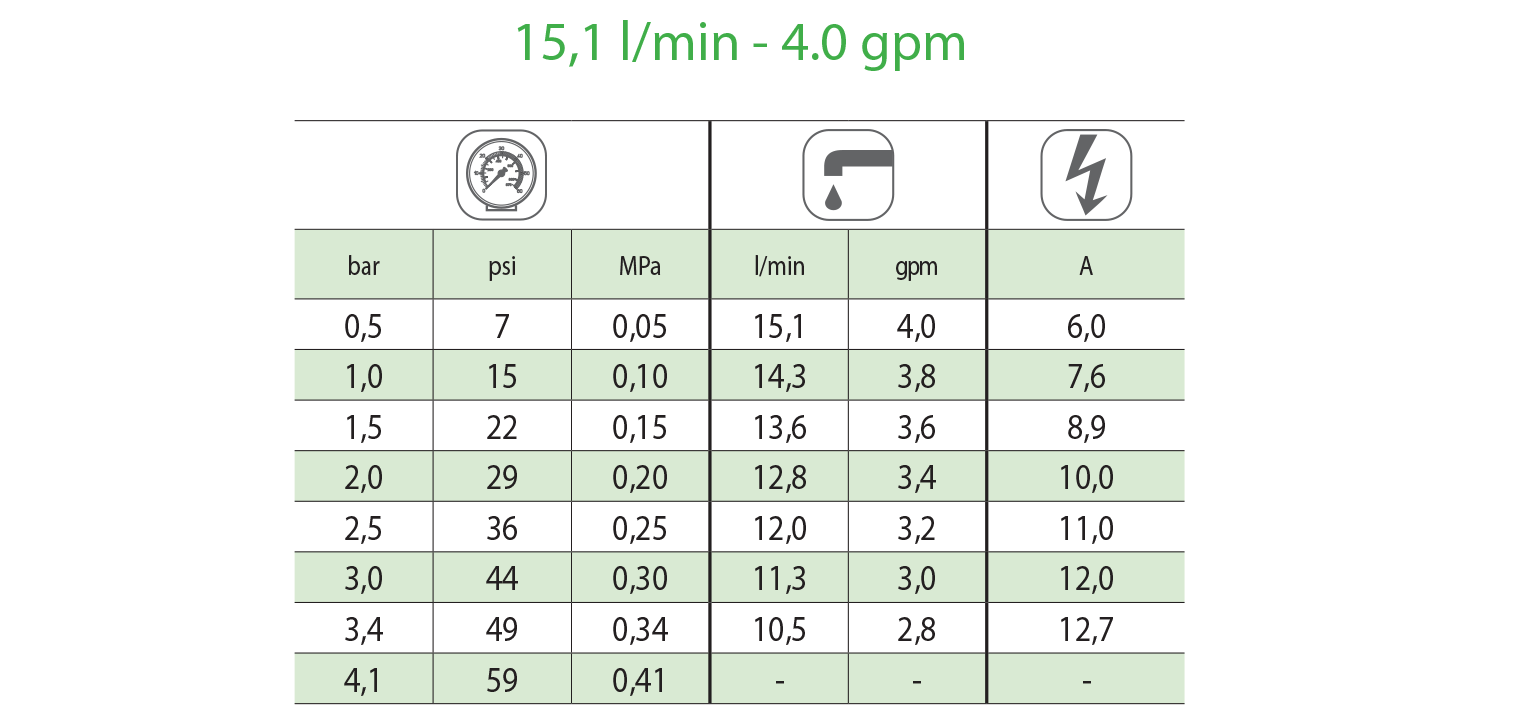

EF 4000

EF 5500 – 12 V

EF 5500 – 24 V

EF 7000 – 12 V

EF 7000 – 24 V

EVERFLO ACCESSORIES

2800 0527

Right hose connection G1/2 – Ø 13 mm

2800 002

Right hose connection G1/2 – Ø 19 mm

2801 0103

Curved hose connection G3/8 – Ø 13 mm

2801 0044

Curved hose connection G1/2 – Ø 19 mm

2801 0104

Curved hose connection G1/2 – Ø 13 mm

0456 0424

On/Off switch and lead

1204 0582*

Pressure regulating valve with bypass and quick discharge lever (with gauge)

* Not for EF1200 – 2200 models

1204 0583*

Pressure regulating valve with bypass and quick discharge lever (without gauge)

* Not for EF1200 – 2200 models

1204 0585*

2 Outlet control valve

* Not for EF1200 – 2200 models

1215 0625*

Pressure regulating valve with bypass with gauge

* Not for EF1200 – 2200 – 3000 models
