P 36/10 -36/15

DOWNLOAD

High Resolution Photo

Low pressure diaphragm pumps

Configuration: 3 diaphragms in Viton on P 36/10 and Desmopan® on P 36/15 (Viton available on request).
Parts in contact with spray liquid: polypropylene and AISI 316-L stainless steel on P 36/10, polyamide and stainless steel on P 36/15.
On request: regulation valve.

Uses

For spraying and pest control in gardens, greenhouses, lawns and distribution of water soluble detergents and paints.

Are you interested in this product?

Whether you are a company or a private customer, you just have to click on one of the buttons below and in a few steps we will direct you to the best solution according to your needs.

B2B USER

NEW CUSTOMER

Technical Data

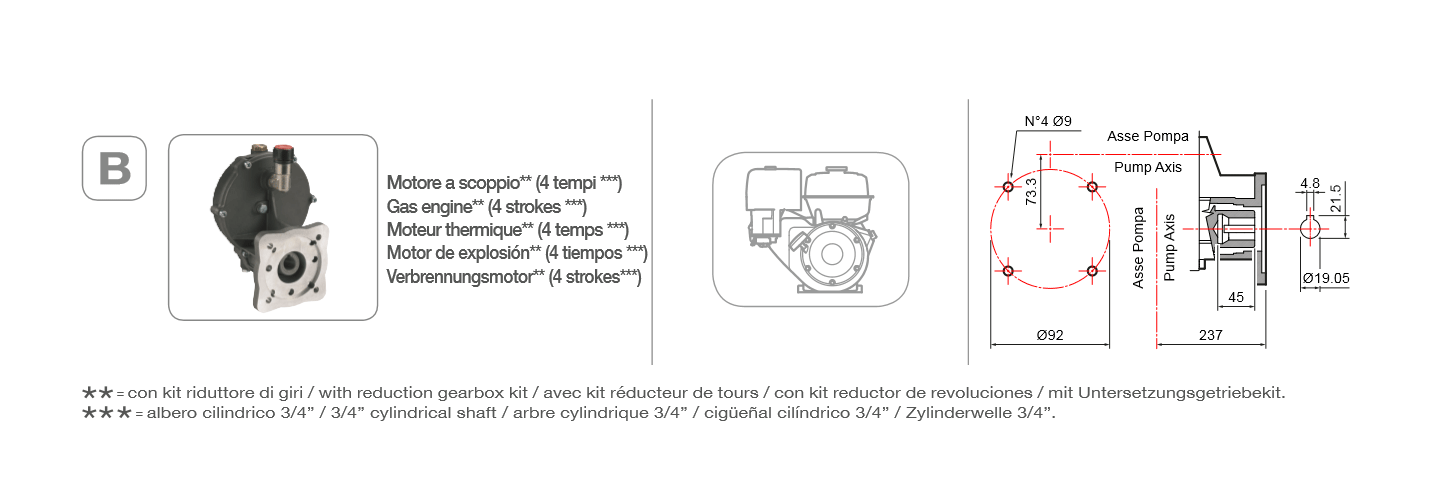

Drawings

Version Adapted

ACCESSORIES

Comet2019-07-03T09:27:39+00:00

VR 10 – VR 15

MC 8 – 18

Configuration: 2 diaphragms in NBR on standard versions (Desmopan® on request), Viton on acid versions. Parts in contact with spray liquid: AISI 316-L stainless steel, polyamide (standard versions), polypropylene (acid version). Standard: regulation valve. Can be fitted directly to electric engine and to gas engine with reduction kit.

Comet2019-01-07T08:52:12+00:00

MC 20/20 – 25

Configuration: 2 diaphragms in NBR (Desmopan® and Viton available on request). Parts in contact with spray liquid: anodized aluminium. Standard: pressure accumulator, adapter for direct connection to an electric motor or a 2/4 strokes combustion engine. Available versions without adapter for connection to pulley or PTO.

Ignazio Trovato2020-10-12T11:24:38+00:00

P 40/20

Configuration P 40/20 agricultural pump: 3 diaphragms in Viton. Parts in contact with spray liquid: polypropylene. AISI 316-L stainless steel. AISI 304 stainless steel screws.
